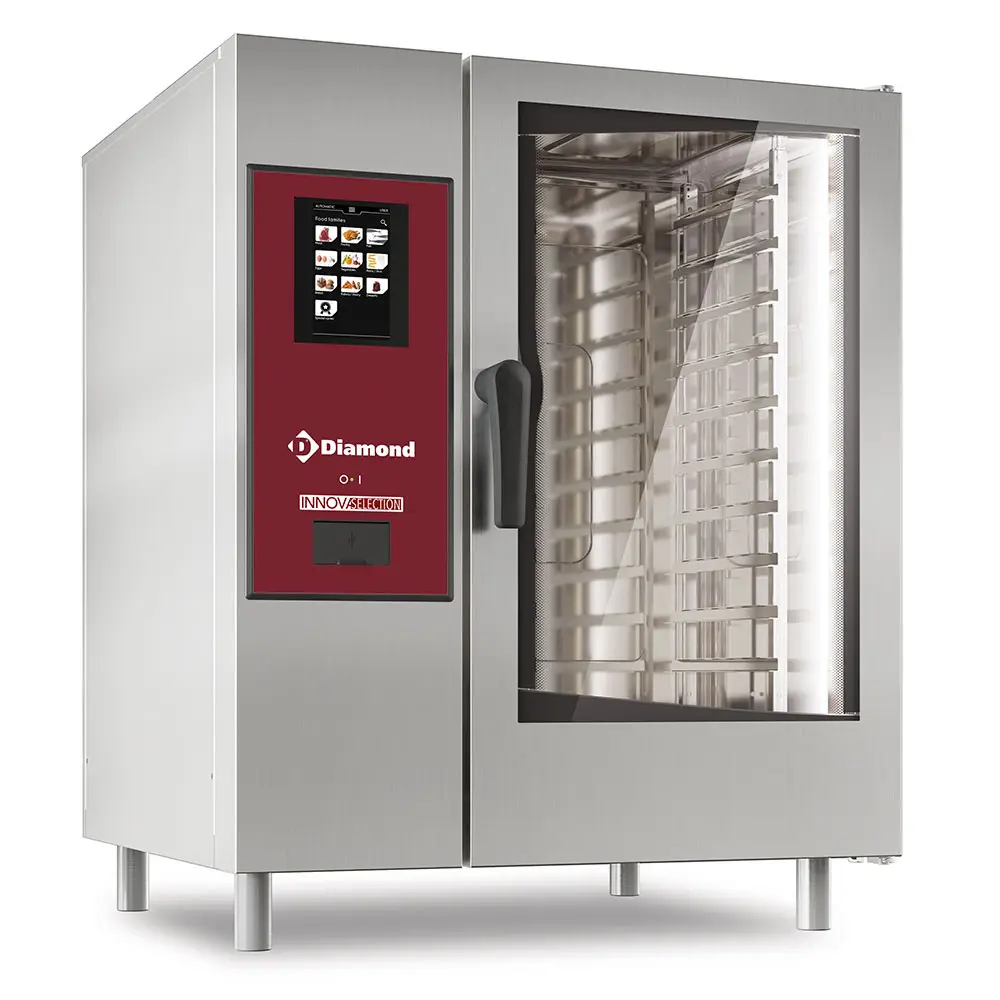

Diamond SBET/XC-10-230V/3- Electric Boiler Steam Convection Oven, 19kW
£11,632.32
+vat
RRP: £20,772.00
Size:
Capacity:
- Oven “LENGTHWISE” payload plates GN 1/3, 1/2, 2/3 and 1/1.
- Load capacity 50 Kg.
- Lateral structures less than 65 mm “anti-tipping”.
- Core temperature probe.
- Recessed nozzle with reel.
- Structure (Dx & Gx) 600×400 EURONORM (on request ref
- AC/SE…)
- NB: delivered without grids and without GN plates.
- Inner and outer construction in stainless steel AISI 304, thermal insulation in ceramic fibre, control panel with stainless steel filter to prevent the components from getting dirty (ventilated panel), stainless steel feet
- Cooking chamber: fully welded, completely sealed, corners and angles rounded without any bumps
- Sealing gasket fixed on the front of the cooking chamber
- Double-drawn bottom that separates condensation from the grease towards the drain
- Standard steam condenser reducing the temperature of the condensate at the drain and limiting the steam outlet when the door is opened
- Easily removable platinum door structure
- Easily removable heat diffusers
- Large motorized door allowing all types of cooking.
- Double-glazed door: ergonomic and athermal handle, automatic closing with safety device to prevent accidental opening, condensation recuperator integrated in the door, hinged interior glass for easy cleaning and perfect hygiene
- Air circulation between the panes of glass guarantees better thermal insulation
- Micro-switch to stop the fan when opening
- Side LED lighting for a global view of the enclosure
- Electric heating: by circular stainless steel shielded resistors placed behind the fan deflectors, steam: by stainless steel shielded resistors in an external casing
- Control panel “TOUCH SCREEN” of 7″ with, front accessibility, ease and speed for after-sales service, IPx5 protection index (against water jets from the lance).
Measures and Content
Dimensions
External Dimension (WxDxH): W867 x D850 x H1058
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond SBET/XC-10-230V/3- Electric Boiler Steam Convection Oven, 19kW then please get in touch.
