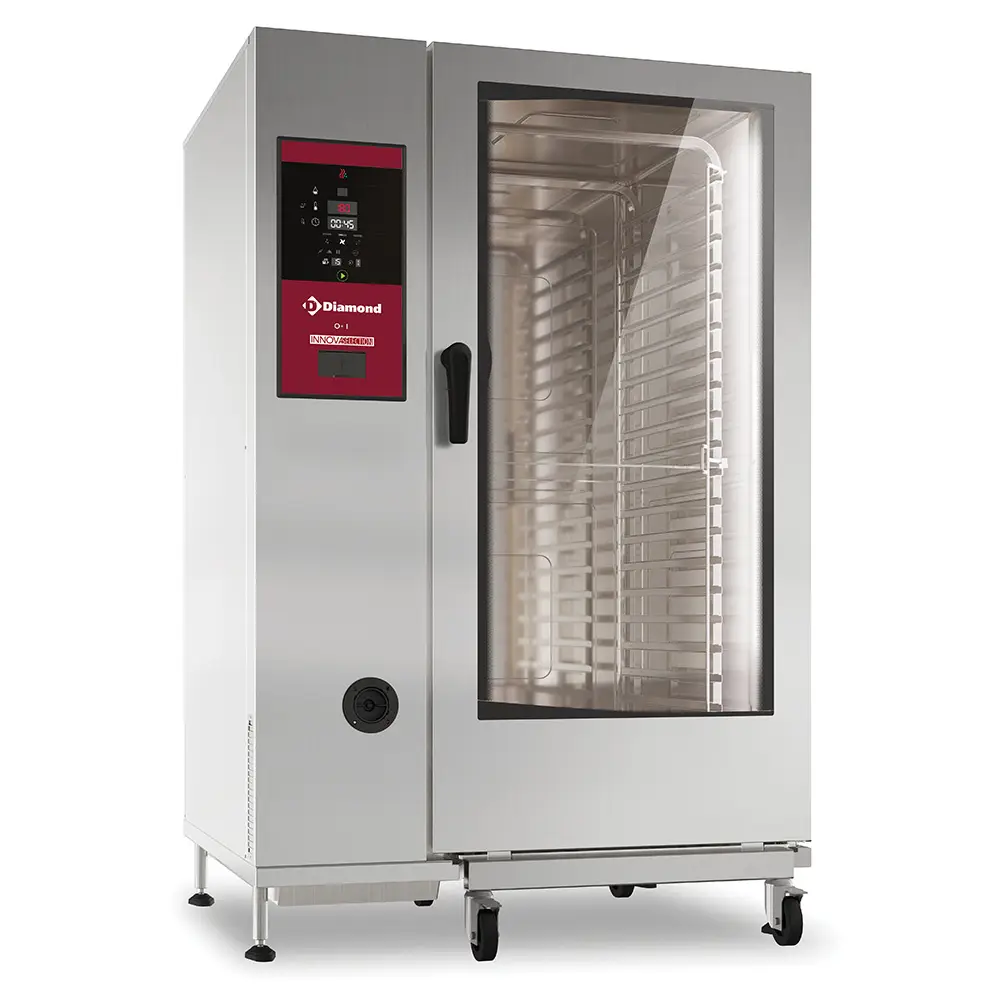

Diamond SBES/XC-22-230V/3- Electric Boiler Steam Convection Oven, 65.4kW
£28,542.08
+vat
RRP: £50,968.00
Size:
Capacity:
- Oven payload plates GN 2/1 (or GN 1/1).
- Load capacity 200 Kg.
- 1 transfer cart and 1 detachable loader less than 65 mm “anti-tipping”.
- Core temperature probe.
- Cart & charger 600×400 EURONORM (on request ref: AC/2P2…)
- Bottom closing plate integrated in the door
- Adjustable stainless steel feet
- NB: delivered without grids and without GN plates.
- Inner and outer construction in stainless steel AISI 304, thermal insulation in ceramic fibre, control panel with stainless steel filter, preventing soiling of the components (ventilated panel), stainless steel feet
- Cooking chamber: fully welded, completely watertight, rounded corners and angles without any roughness
- Sealing gasket fixed on the front of the cooking chamber
- Double-drawn bottom that separates condensation from the grease towards the drain
- Standard steam condenser reducing the temperature of the condensate at the drain and limiting the steam outlet when the door is opened
- Easily removable platinum door structure
- Easily removable heat diffusers
- Large motorized door allowing all types of cooking
- Unique design of the enclosure coupled with a side fan in AISI 304 stainless steel (CCRR), guarantee uniform heat management and distribution.
- Double-glazed door: ergonomic and athermal handle, automatic closing with safety device to prevent accidental opening, condensate recovery unit integrated in the door, interior window mounted on hinges for easy cleaning and perfect hygiene
- Air circulation between the panes of glass guarantees better thermal insulation
- Micro-switch to stop the fan when opening
- Side LED lighting for a global view of the enclosure
- Electric heating: by circular stainless steel shielded resistors placed behind the fan deflectors, steam: by stainless steel shielded resistors in an external casing
- Control panel (Thermostat from 25° to 300°C
- Timer from 1 min to 8 h, …) with digital display: clear and logical design, front access, easy and quick after-sales service, IPx5 protection index (against water jets from the lance).
Measures and Content
Dimensions
External Dimension (WxDxH): W1162 x D1066 x H1794
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond SBES/XC-22-230V/3- Electric Boiler Steam Convection Oven, 65.4kW then please get in touch.
01922 926123
