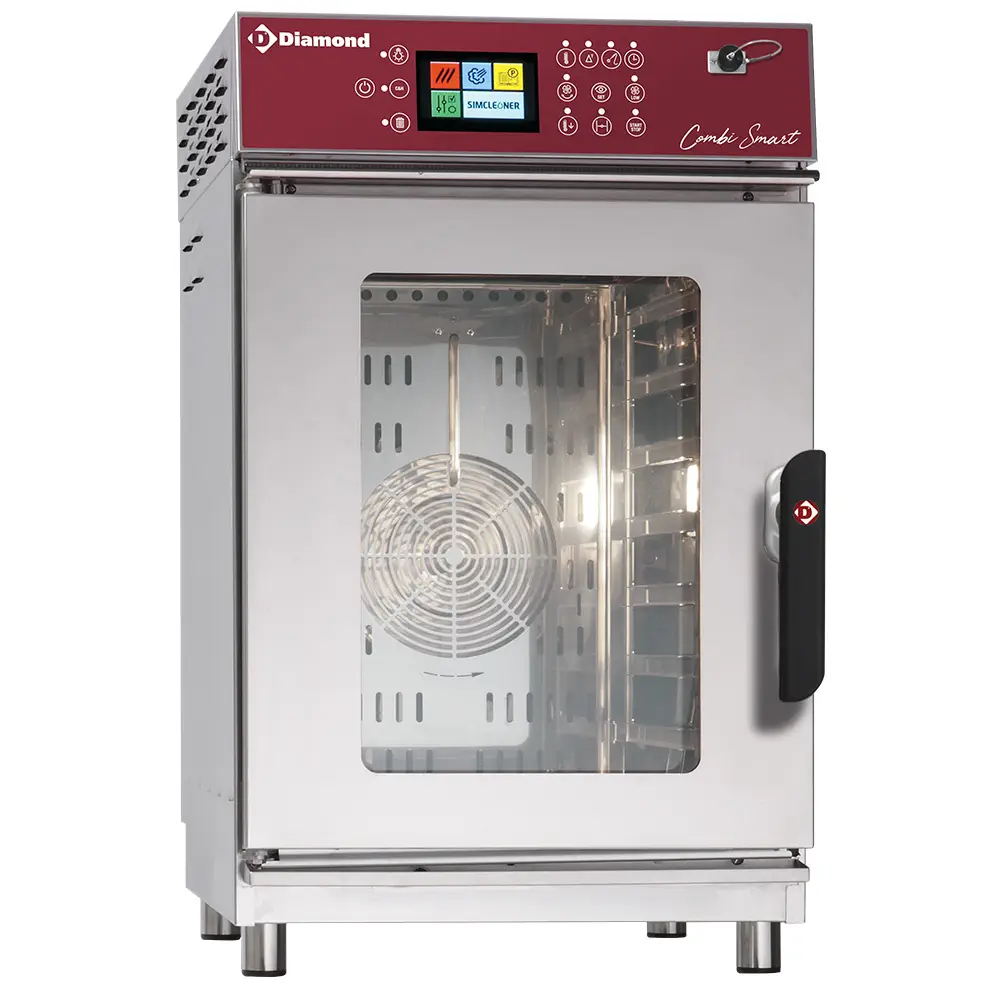

Diamond FVS-711/TS Electric Steam Convection Oven, 7 x 1/1 GN
£4,697.28
+vat
RRP: £8,388.00
Size:
Capacity:
- Control panel TOUCH SCREEN
- 7x GN 1/1 (530×325 mm)
- Integrated washing system AUTO-CLEANING
- Standard supplied with 1 grid GN 1/1.
- 1 Turbine “autorevers”
- Heating by stainless steel armoured resistance(s), placed behind the deflector and “direct” steam by “nebulisation”.
- Depth loading, GN plates 1/3 – 1/2 – 2/3 – 1/1, removable plate holder structure, 67 mm spacing.
- Easy after-sales service, front access.
- Baking chamber in AISI 304 stainless steel, rounded corners and corners (easy maintenance), deep-drawn bottom with discharge.
- Integrated condensate collection tray (on the door), directly connected to the discharge.
- Internal allogenic light.
- Door with thermal double glazing (reversible), “ventilated” air space between the panes of glass, allowing the cooling of the outer glass, hinged inner glass (easy maintenance).
- Automatic door closing, ergonomic and athermic handle, gasket (removable) placed in the counter door.
- Microswitch, for stopping the fan(s) when the door is opened.
- Safety thermostat.
- “Releasing valve” for smoke vapour evacuation, adjustable (from the control panel).
- Dosing pump produces washes and dosing pump rinses.
- External construction in AISI 430 stainless steel, with adjustable feet.
Measures and Content
Dimensions
External Dimension (WxDxH): W523 x D846 x H877
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond FVS-711/TS Electric Steam Convection Oven, 7 x 1/1 GN then please get in touch.
