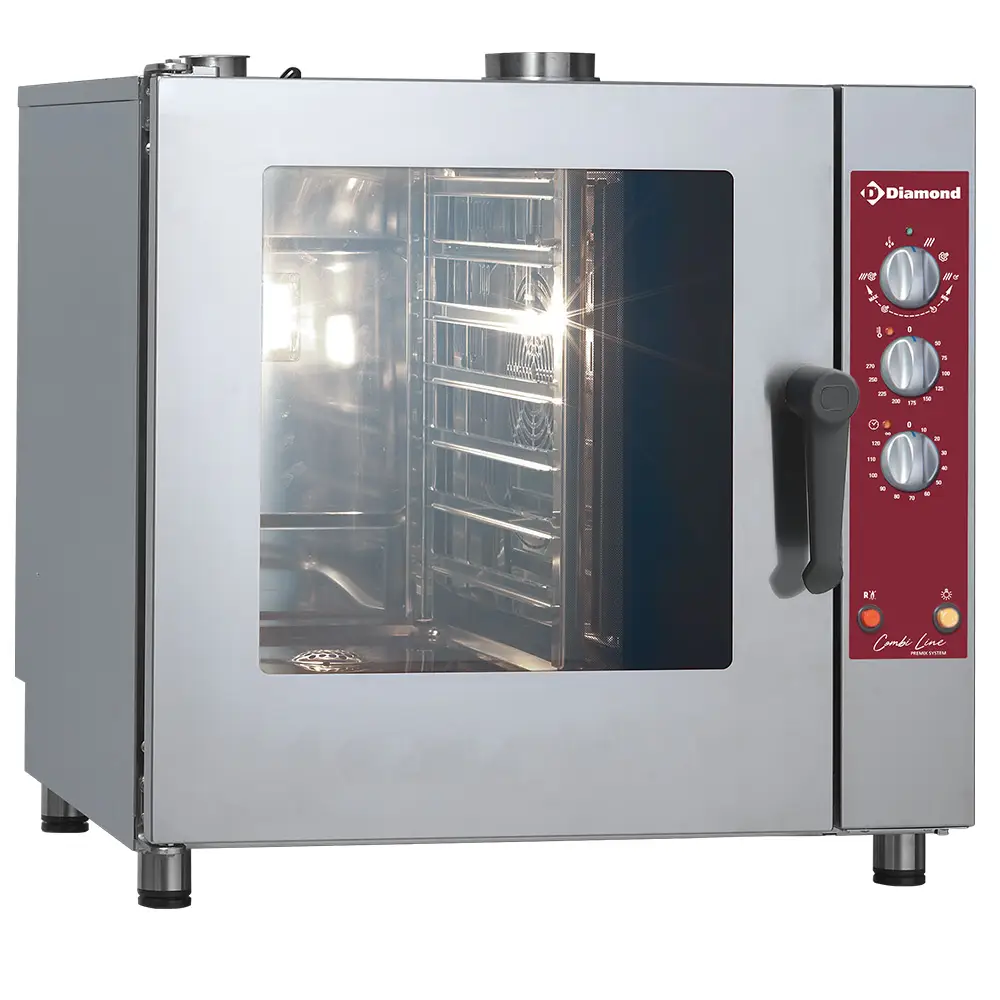

Diamond DGV-711/P Gas Steam Convection Oven, 7x GN 1/1
£4,497.92 +vat
+vat
RRP: £8,032.00
Available to order: lead time applies
Size:
Capacity:
Available to order: lead time applies
- Mechanical control panel: steam regulator from 0 to 99%, thermostat from 50 ° C to 270 ° C, timer from 1 to 120 min
- Oven “LENGTHWISE” loading plates GN 1/3 ,1/2 , 2/3 et 1/1
- Standard delivered with 1 grid GN 1/1
- Compact, space-saving furnaces
- Direct steam by “nebulization”
- Convection heating: by a gas burner (PREMIX SYSTEM) placed in the chamber, behind the turbine deflector
- Depth loading, spacing 67 mm
- Easy after-sales service, access to controls from the side part
- Hinged turbine deflector, easy maintenance
- Chamber made of fully welded AISI 304 stainless steel, rounded corners and corners, predisposed for grease filter
- Integrated condensate collection tray (on the door), directly connected to the discharge
- Allogenic light
- Door with double thermal glass, hinged inner glass, easy cleaning, athermic and ergonomic handle
- Magnetic door micro switch
- Steam condenser for condensate discharge as standard
- “Releasing valve” for smoke evacuation – cooking vapours
- Made of AISI 304 stainless steel
- The equipment is manufactured following the (CE) standards in force
Measures and Content
Dimensions
External Dimension (WxDxH): W797 x D788 x H818
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond DGV-711/P Gas Steam Convection Oven, 7x GN 1/1 then please get in touch.
